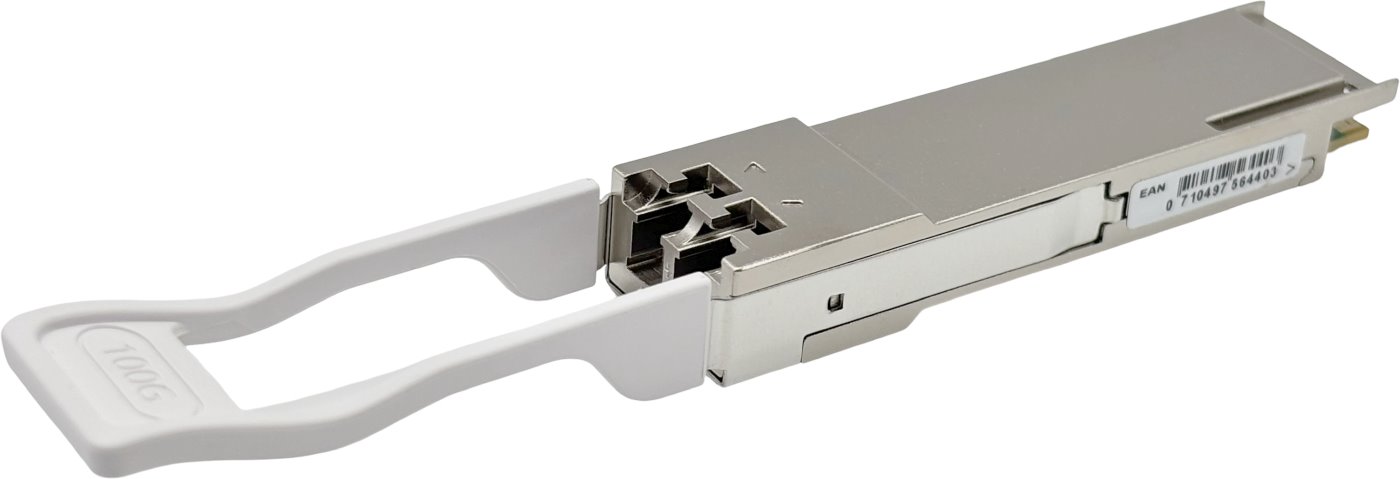

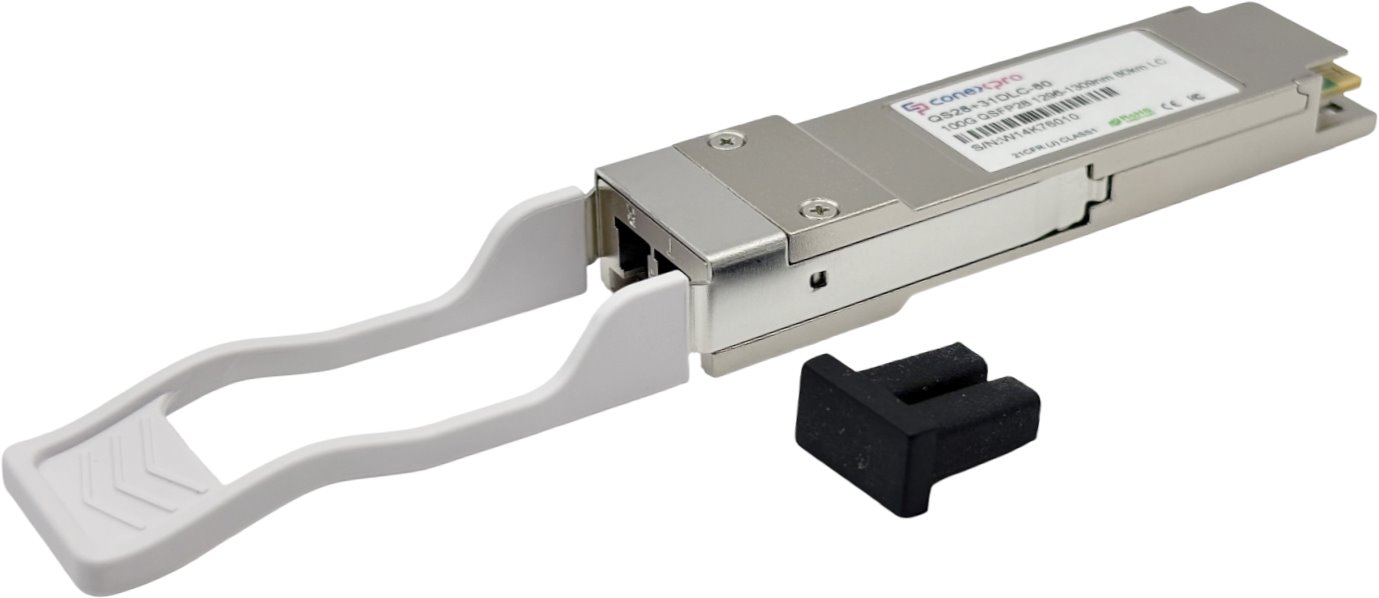

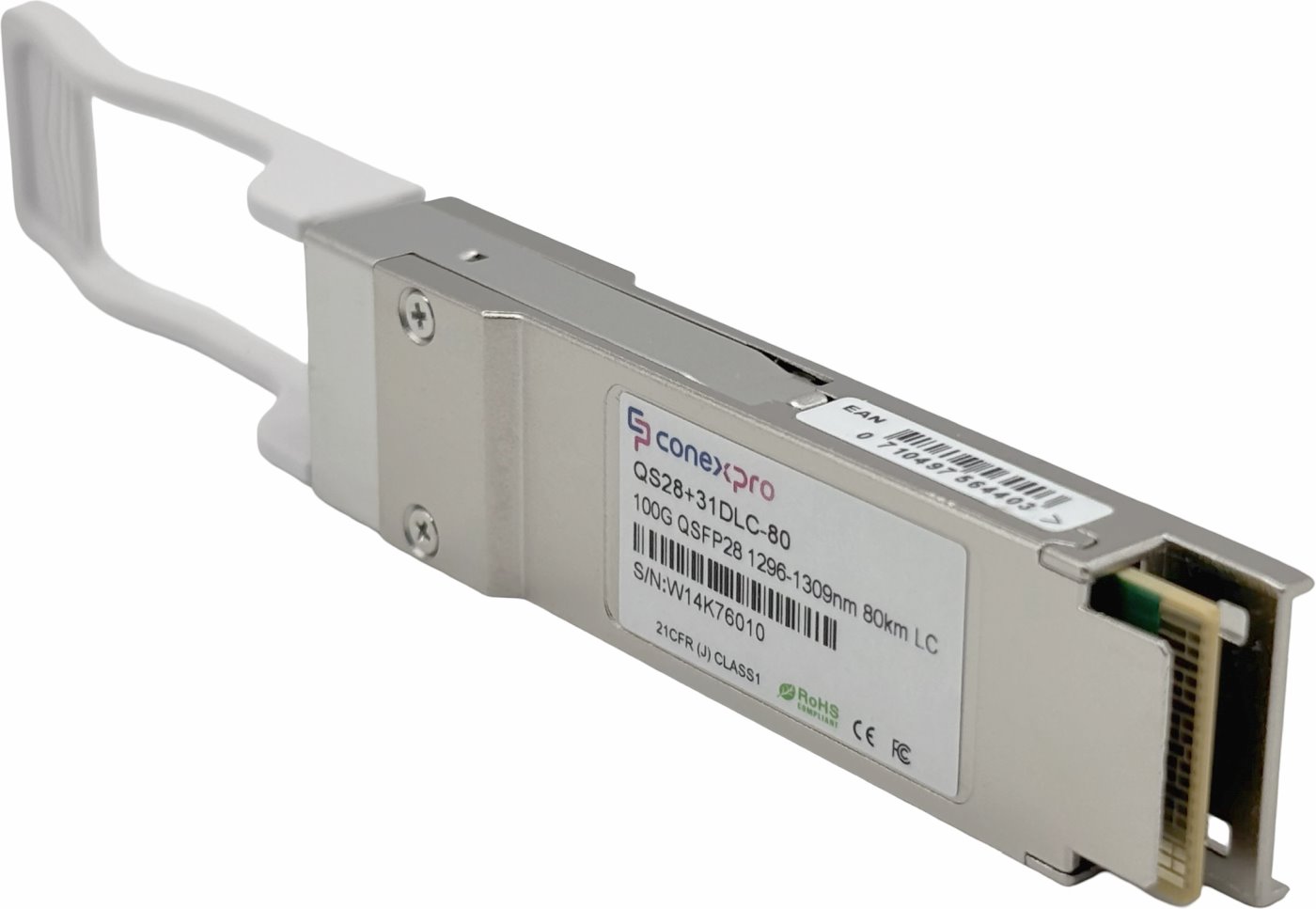

Conexpro 100G QSFP28 optical module, SM, 1310nm, 80km, 2x LC, CWDM, DDM

Conexpro 100G QSFP28 optical module, SM, 1310nm, 80km, 2x LC, CWDM, DDM
Conexpro 100G QSFP28 optical module, SM, 1310nm, 80km, 2x LC, CWDM, DDMConexpro 100G QSFP28 optical module, SM, 1310nm, 80km, 2x LC, CWDM, DDMConexpro 100G QSFP28 optical module, SM, 1310nm, 80km, 2x LC, CWDM, DDM
100 Gigabit Singlemode QSFP28 CWDM module from the manufacturer Conexpro designed for backbone connections with wavelengths (Tx and Rx) 1295 nm, 1300 nm, 1304 nm, 1309 nm, speed of 100 Gbps is equipped with 2x LC connectors and is intended for connections over distances up to 80 km. This module offers universal compatibility, meaning it can work w ... More information
ManufacturerConexpro
PNQS28+31DLC-80
EAN0710497564403
Where to buyAsk a question

Product description

100 Gigabit Singlemode QSFP28 CWDM module from the manufacturer Conexpro designed for backbone connections with wavelengths (Tx and Rx) 1295 nm, 1300 nm, 1304 nm, 1309 nm, speed of 100 Gbps is equipped with 2x LC connectors and is intended for connections over distances up to 80 km. This module offers universal compatibility, meaning it can work with almost all available active components. Naturally, it supports optical connection diagnostics using the DDM (Digital Diagnostic Monitoring) feature.

Key Features

  • Format: QSFP28
  • Transfer speed: 100 Gbps
  • For fiber type: Singlemode
  • Connectors: 2x LC
  • Range: up to 80 km
  • Wavelength: 1295 / 1300 / 1304 / 1309 nm (Tx and RX)
  • CWDM technology
Do you have a question or comment about this product?
Ask a question

Technical parameters

Optics

FormatQSFP28
For cable typeSingle Mode
Transmission speed100 Gbps
Wavelength - Tx/Rx [nm]1295, 1300, 1304, 1309
Distance [km]80
Transfer typeCWDM, 2-fiber
Polishing typeUPC

Connectors and interfaces

Optical Connectors(2) LC

Physical characteristics

Operating temperature [°C]0 up to 70

General

SFP CompatibilityUniversal

Software

DDMI - diagnosticsYes
