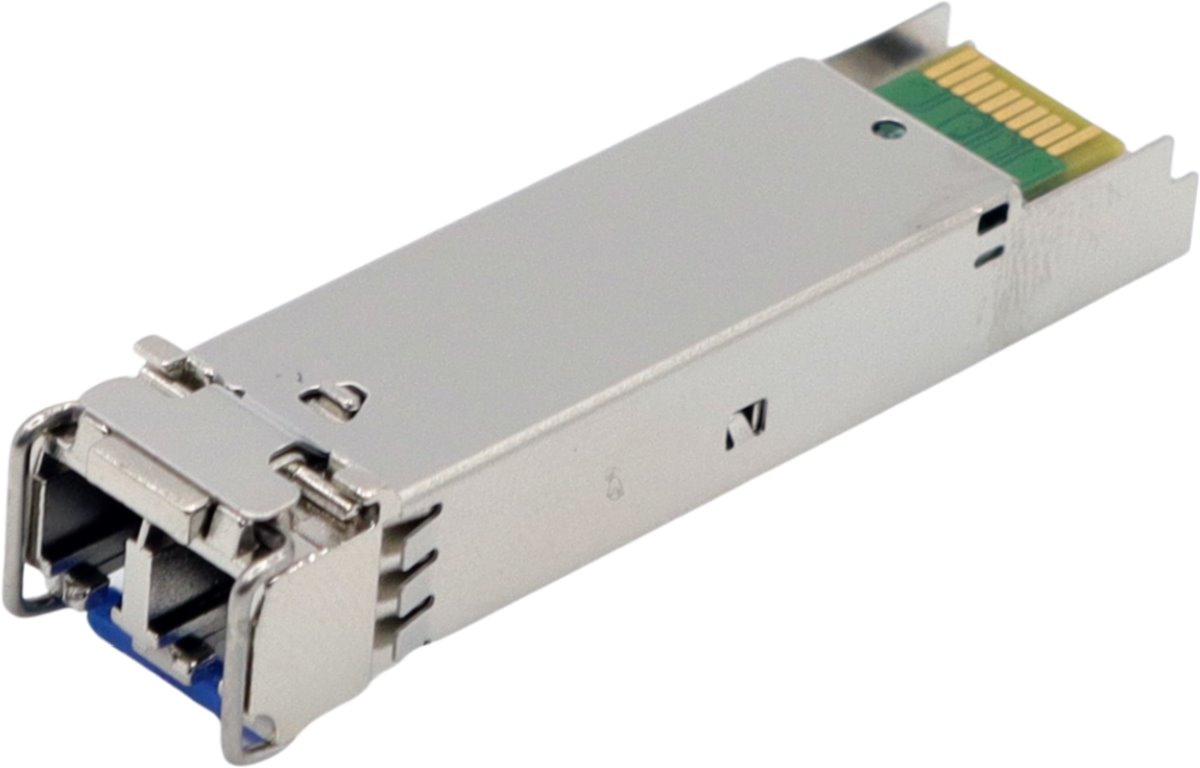

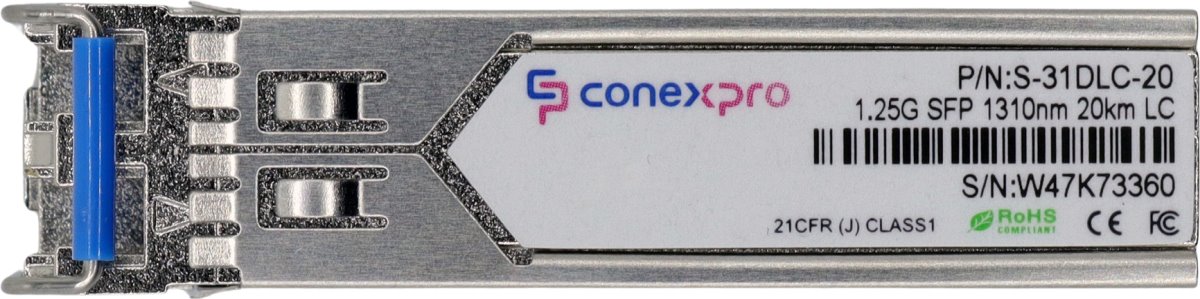

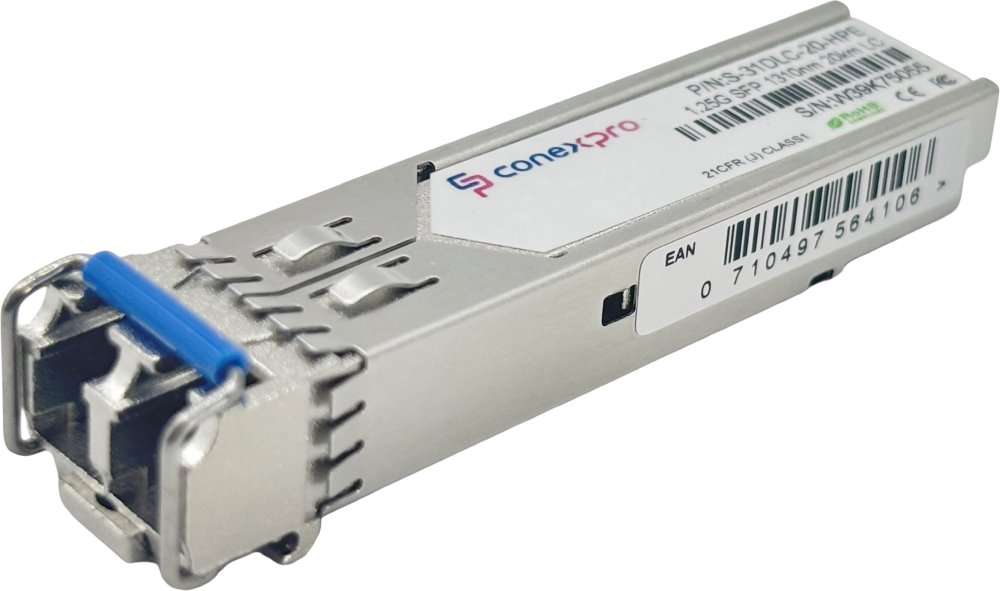

Conexpro 1.25G SFP optical module, SM, 1310nm, 20km, 2x LC, DDM - HPE

Conexpro 1.25G SFP optical module, SM, 1310nm, 20km, 2x LC, DDM - HPE
Conexpro 1.25G SFP optical module, SM, 1310nm, 20km, 2x LC, DDM - HPEConexpro 1.25G SFP optical module, SM, 1310nm, 20km, 2x LC, DDM - HPEConexpro 1.25G SFP optical module, SM, 1310nm, 20km, 2x LC, DDM - HPE
Gigabit Singlemode SFP module from manufacturer Conexpro with wavelength (Tx and Rx) 1310 nm, speed 1 Gbps, equipped with two LC connectors with UPC polishing and intended for connections over distances up to 20 km. The module is specially modified and is compatible only with HPE Aruba Networking ProCurve devices and other brands according to the ... More information
ManufacturerConexpro
PNS-31DLC-20-HPE
EAN0710497564106
Where to buyAsk a question

Product description

Gigabit Singlemode SFP module from manufacturer Conexpro with wavelength (Tx and Rx) 1310 nm, speed 1 Gbps, equipped with two LC connectors with UPC polishing and intended for connections over distances up to 20 km. The module is specially modified and is compatible only with HPE Aruba Networking ProCurve devices and other brands according to the MSA standard. Support for optical link diagnostics via DDM (Digital Diagnostic Monitoring) functionality is a given.

HPE Compatibility

The modules are fully compatible with HPE Aruba Networking ProCurve switches with operating systems AOS-S (2510, 2520, 2530, 2540, 2600, 2610, 2620, 2930, 3810) and AOS-CX (6200, 6300, 6400, 83xx, 84xx, 93xx, 81xx). Compatibility is ensured by modifying the EEPROM for proper identification in HPE devices, which allows for seamless operation without warnings about non-original modules.

Do you have a question or comment about this product?
Ask a question

Download

Technical parameters

Optics

FormatSFP
For cable typeSingle Mode
Transmission speed1 Gbps
Wavelength - Tx/Rx [nm]1310
Distance [km]20
Transfer type2-fiber
Polishing typeUPC

Connectors and interfaces

Optical Connectors(2) LC

Physical characteristics

Operating temperature [°C]0 up to 70

General

SFP CompatibilityHPE

Software

DDMI - diagnosticsYes
