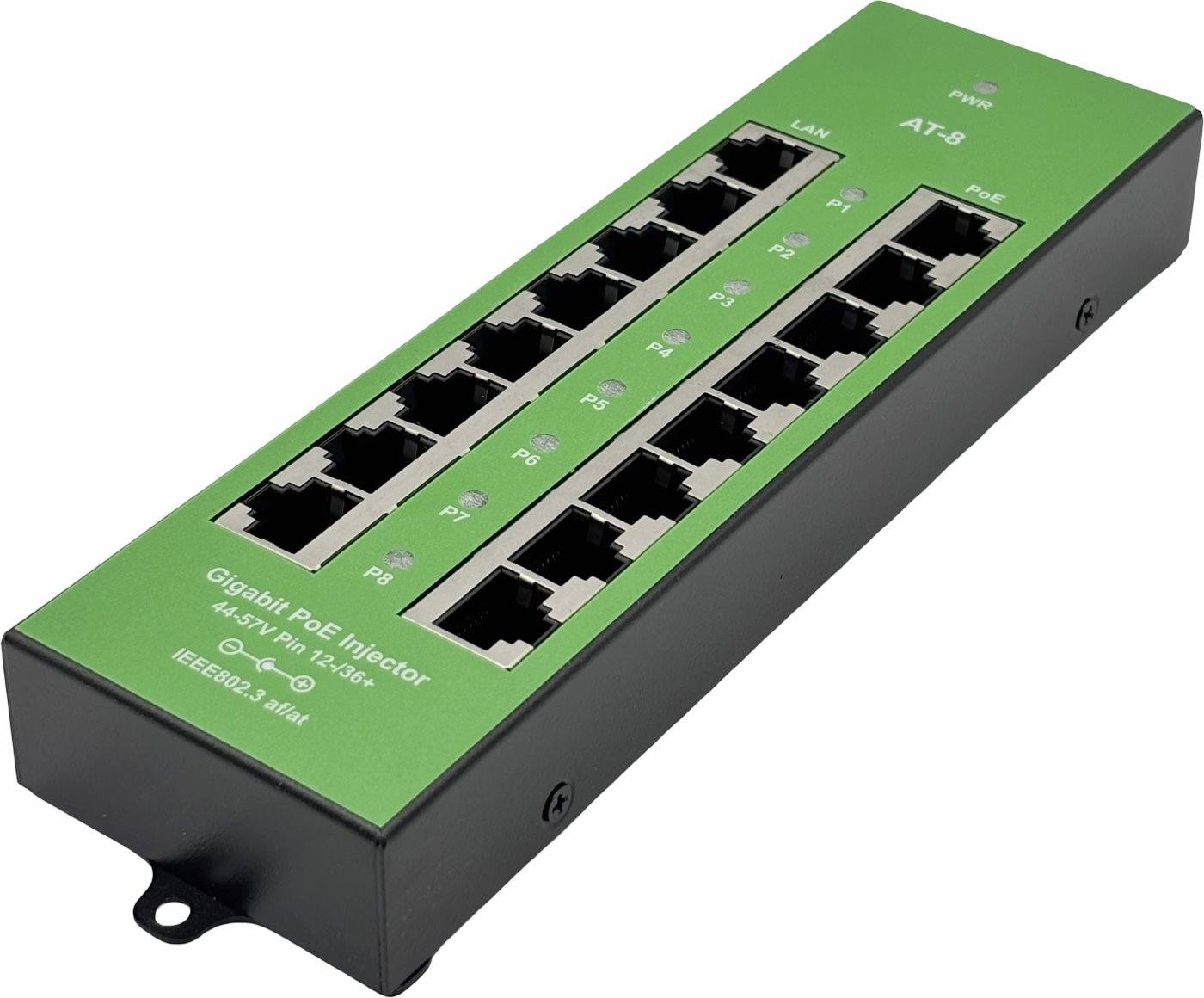

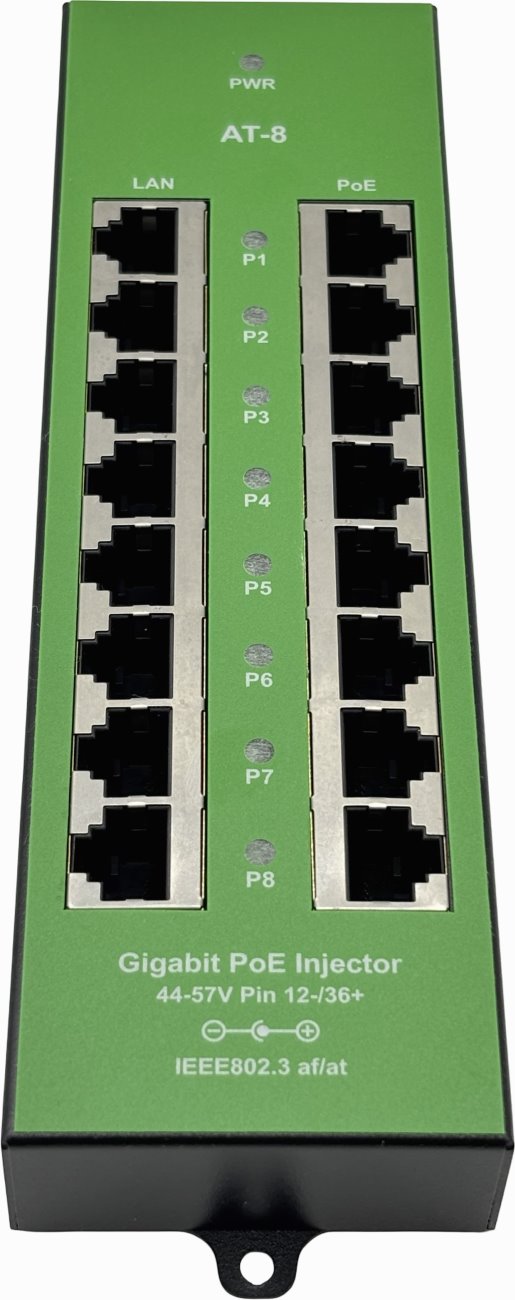

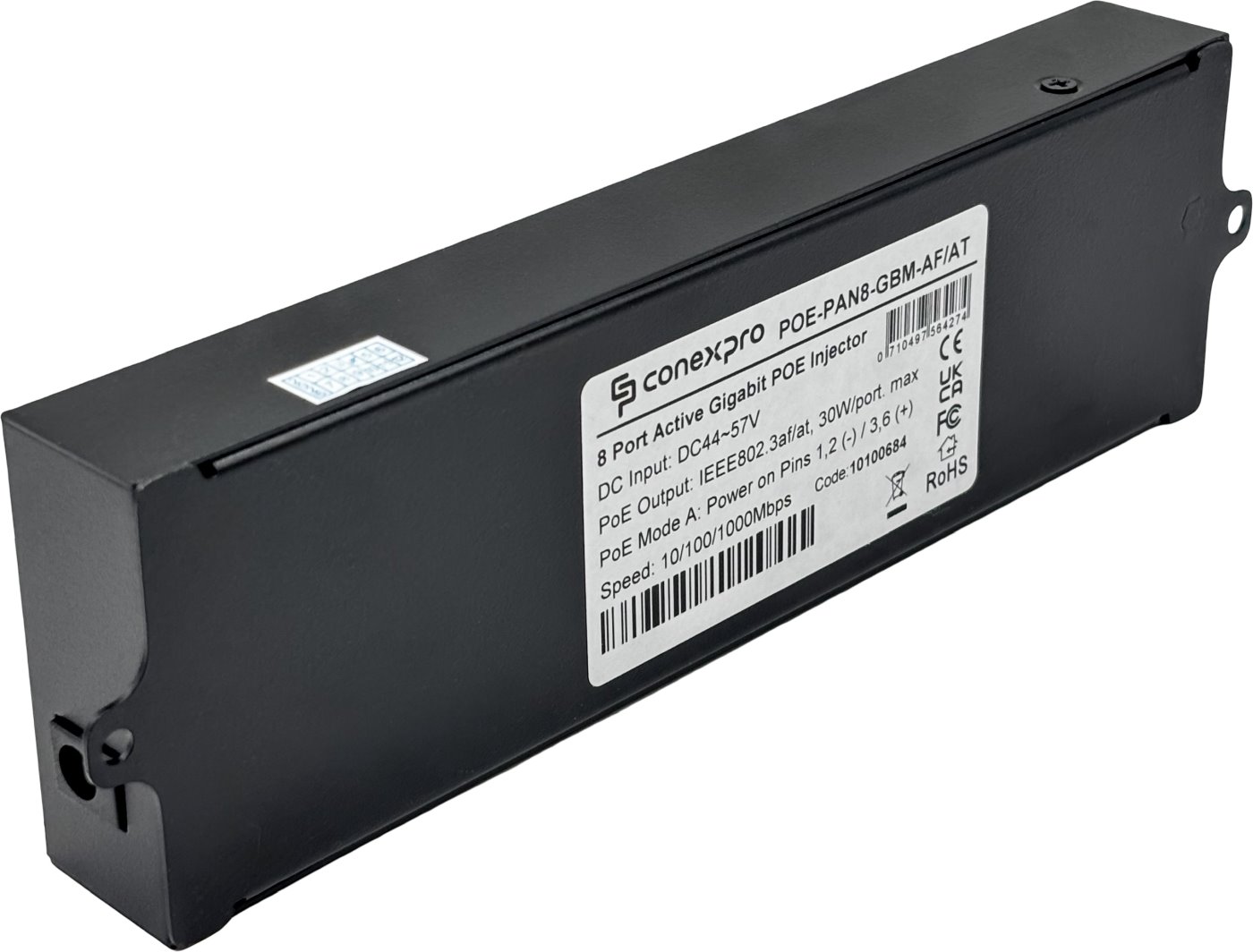

Gigabit active PoE injector in a metal chassis for powering up to 8 devices with support for 802.3af/at PoE (max. 30 W per port). The LAN ports are used for connecting to a switch or router, while the ports marked as PoE are for powered devices. Power is transmitted over wires 3,6 (+) and 1,2 (-). Powering the panel is ensured by a connector size of 2,1/5,5 mm.

The panel can be powered using a voltage of 44 to 57 V DC. The power supply is not included in the package. Each port and the power supply are equipped with LED indication.

Key Features

• Gigabit PoE injector for up to 8 devices
• Support for active PoE 802.3af/at
• Power up to 30 W per port, total up to 240 W
• Durable metal construction
• Input voltage 44 to 57 V DC
• Maximum current 0,68 A per port
• Power connector 2,1/5,5 mm
• LED indication for power and individual ports
