Conexpro GNT-P1012G6, PoE switch, 10x LAN, 8x PoE, 2x SFP

Gigabit PoE switch in a metal chassis, without management with 10x Gigabit LAN ports and two Gigabit SFPs, the device is intended for places with an optical connection and is suitable for power up to 8 devices (cameras/Wi-Fi AP). The Switch offers quiet fanless operation, 10x 10/100/1000 Mbps + 2x Gigabit SFP uplinks, of which 8 LAN ports support ... More information

ManufacturerConexpro

PNGNT-P1012G6

EAN0710497560221

Where to buy Ask a question

Product description Download2 Technical parameters

Product description

Gigabit PoE switch in a metal chassis, without management with 10x Gigabit LAN ports and two Gigabit SFPs, the device is intended for places with an optical connection and is suitable for power up to 8 devices (cameras/Wi-Fi AP). The Switch offers quiet fanless operation, 10x 10/100/1000 Mbps + 2x Gigabit SFP uplinks, of which 8 LAN ports support the PoE function (802.3af/at, 30W/port, ports no. 7 and 8 even support 802.3af/at/bt - 60W/port) with a total PoE budget of 120W, low internal consumption and power supply via a 230V AC connector thanks to the built-in resources.

Key Features

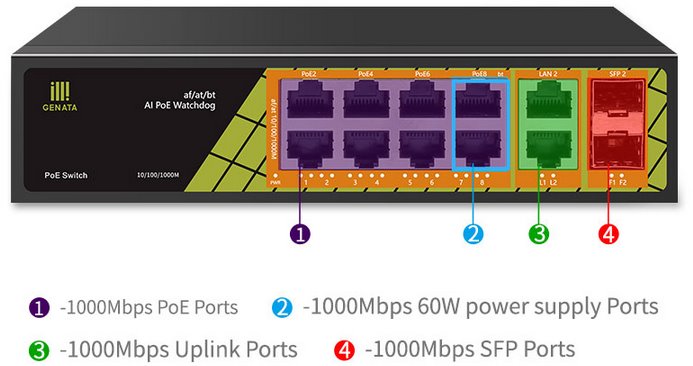

(10) 10/100/1000 Mbps LAN + (2) Gigabit SFP
230V AC power supply
(6) 802.3af/at PoE (30W/port) + (2) 802.3af/at/bt PoE (60W/port)
PoE budget 120W
Robust metal chassis
Silent operation without fans
PoE watchdog
Dimensions 187 x 139 x 43mm

Package contents

Device
Power cord

Do you have a question or comment about this product?

Ask a question

Download

Datasheet QSG

Technical parameters

Connectors and interfaces

LAN speed(8) 10/100/1000Mbps

Optical interfaces(2) 1000Mbps

Power

Power typeMains power (230V)

PoE typePoE-Out (only)

PoE-Out standards802.3af, 802.3at, 802.3bt

PoE Out ports8

PoE budget [W]120

Max. power consumption [W]120

Power via connector/terminal230V AC

Physical characteristics

DesignOn the wall, Desktop

PurposeIndoor

FansWithout fan

Chassis designMetal

Operating temperature [°C]-10 up to 55

Height [mm]43

Depth [mm]139

Width [mm]187

General

Switchning capacity [Gbps]24

MAC address table8000
