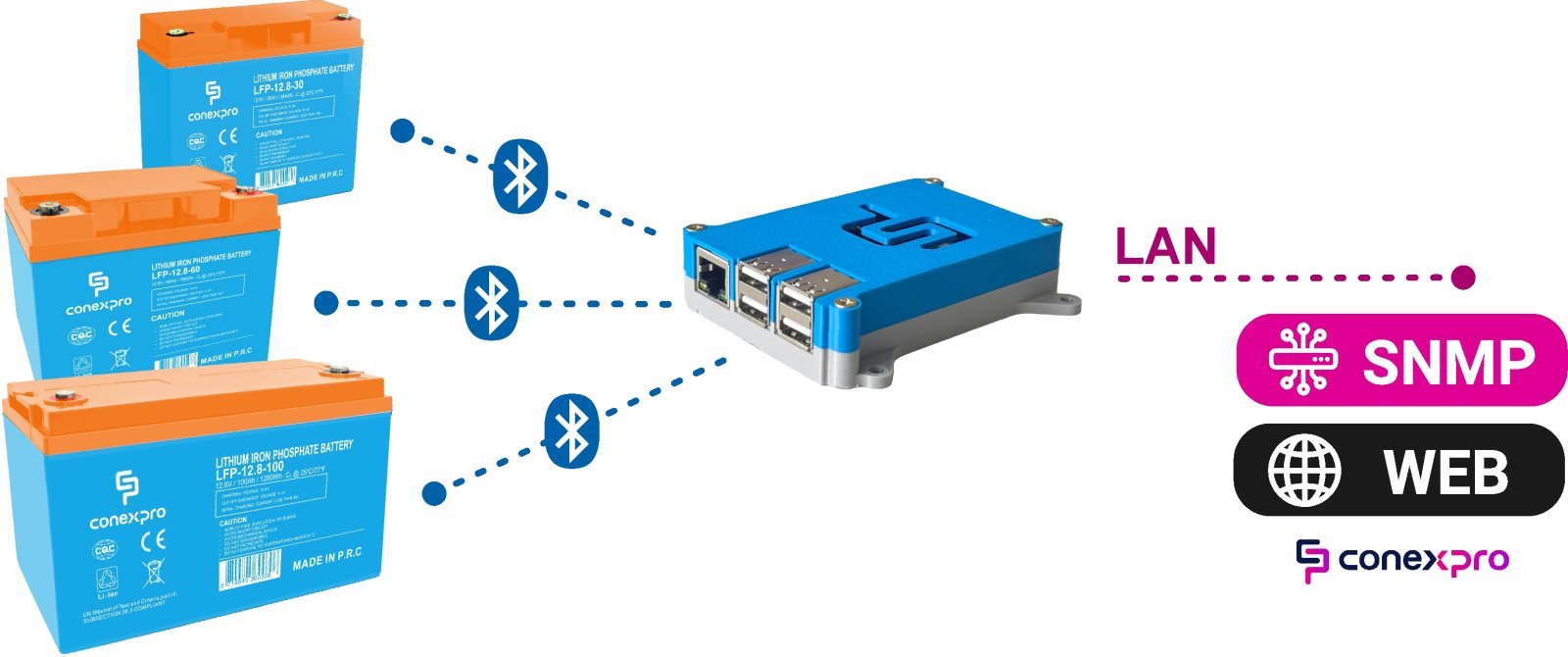

Conexpro BatMon-BT1 is a compact and sufficiently powerful device designed for reliable monitoring of up to 12 LiFePO4 batteries from Conexpro. It allows accurate tracking of the voltage of individual cells, total current, temperature, and capacity using an intuitive web interface or SNMP protocol, through Bluetooth communication with the batteries.

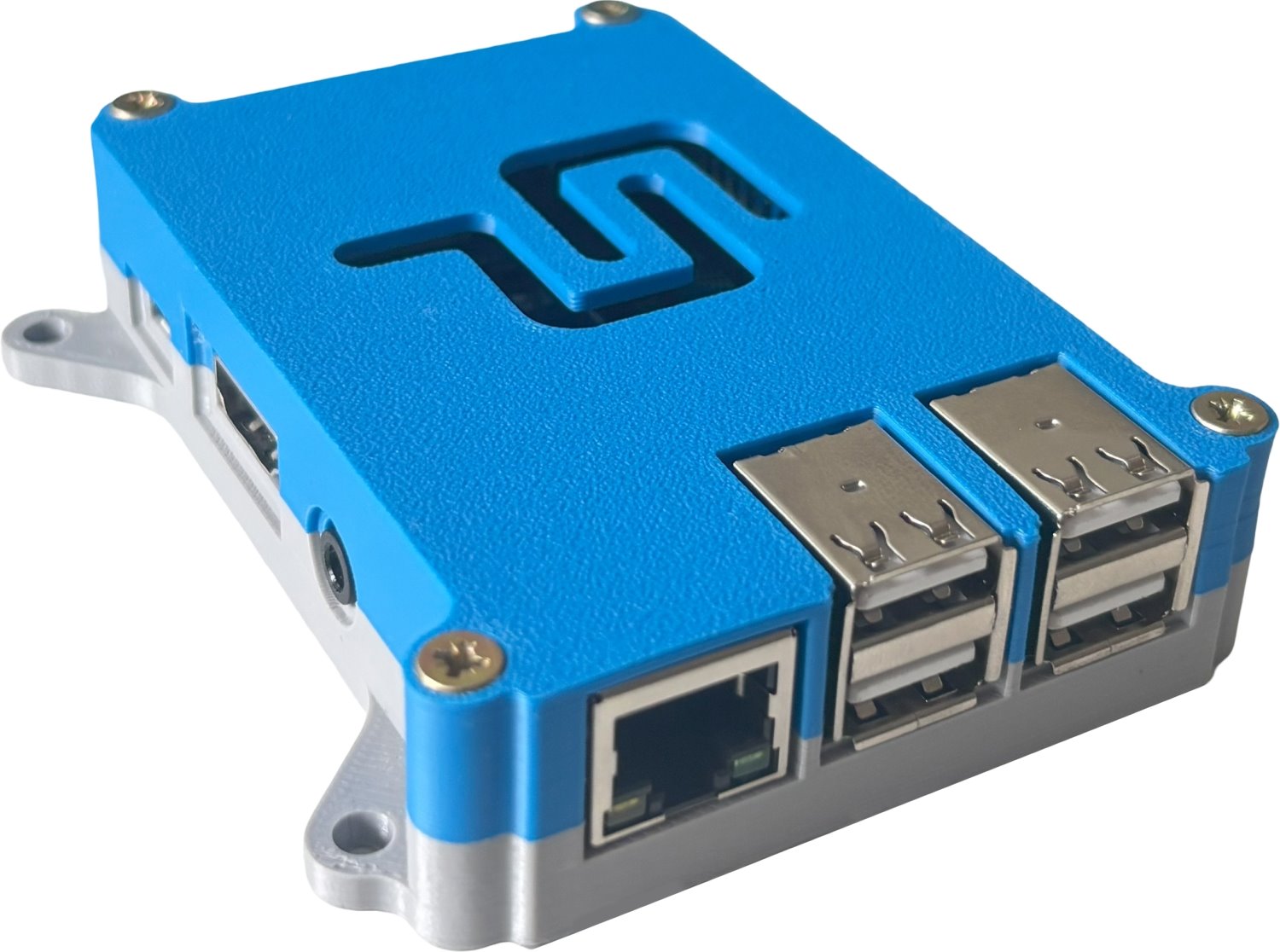

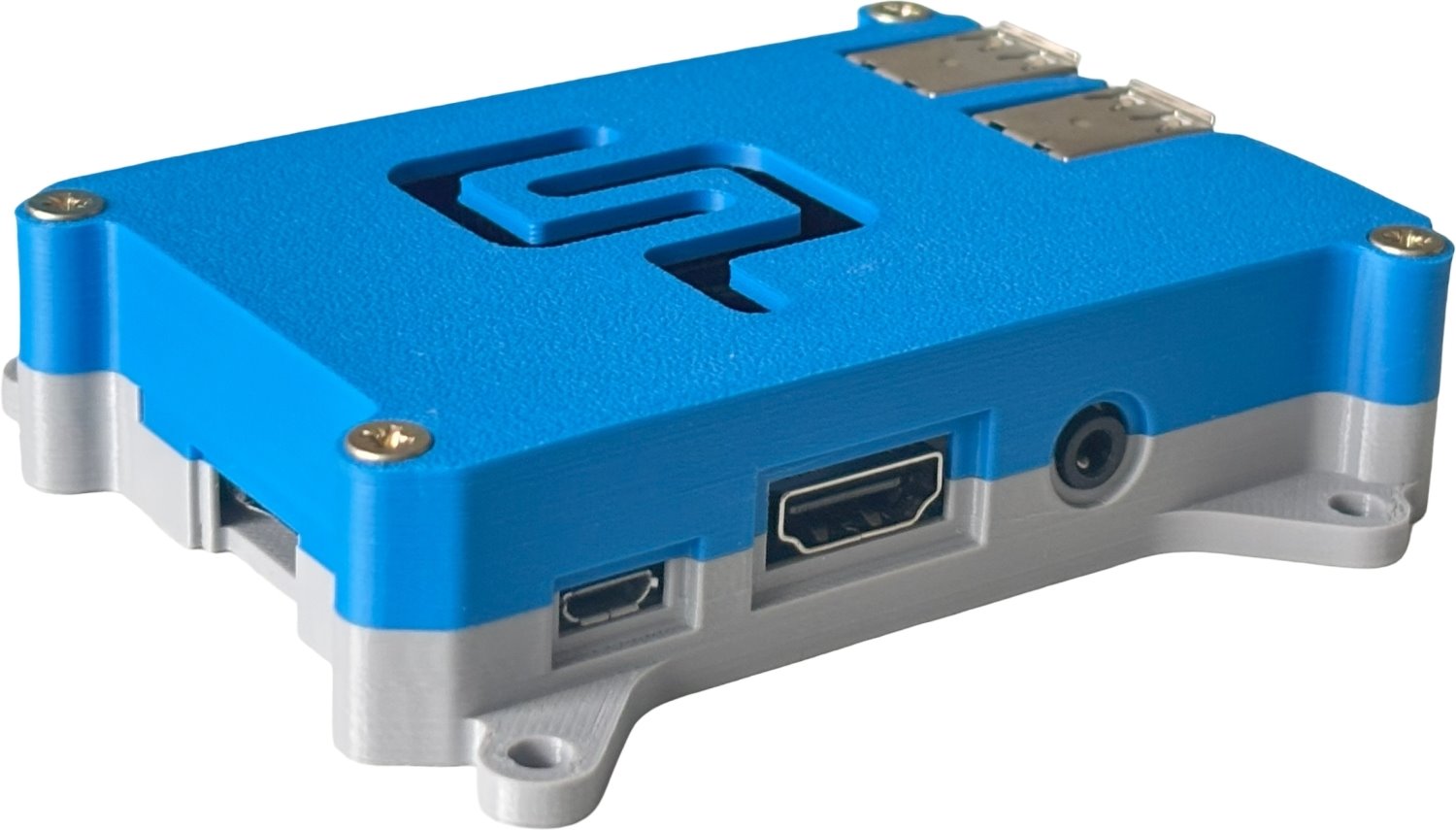

The measured values can be easily exported to a CSV file, which is ideal for analysis and long-term archiving. The device is built on the ARM Cortex-A7 platform, features four USB ports, and gigabit Ethernet.
Key Features
- Monitoring Conexpro LiFePO4 batteries
- Monitoring up to 12 LiFePO4 batteries

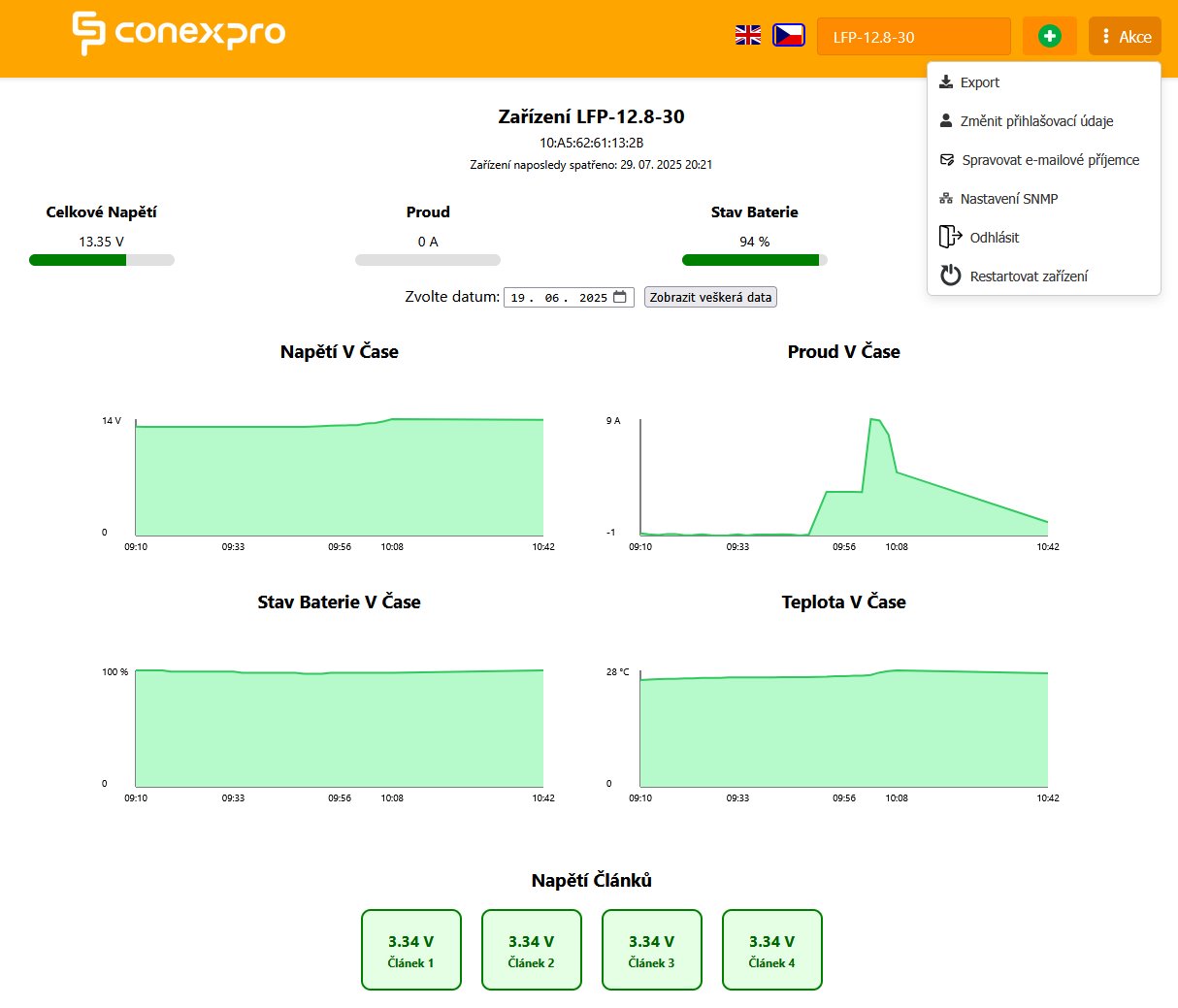

- Overview and history of total voltage, voltage of individual cells, current, capacity, temperature of all batteries through an intuitive web interface
- Battery monitoring via SNMP
- Export of selected values to CSV
- 1.2 GHz 32-bit quad-core ARM Cortex-A7 CPU, 1 GB RAM
- (4) USB 2.0 ports
- MicroSDHC slot
- 10/100/1000 Mbps Ethernet port
- Typical power consumption around 1.5 W - power supply via microUSB (5 V, 2 A)
- Silent operation without a fan
Reliable Storage
To ensure long-term stable monitoring without downtime, we use high-quality Purple series microSD cards from Western Digital, designed for continuous 24/7 operation. These cards provide high durability against wear and long lifespan even with frequent data writing.
Simple and Practical Management

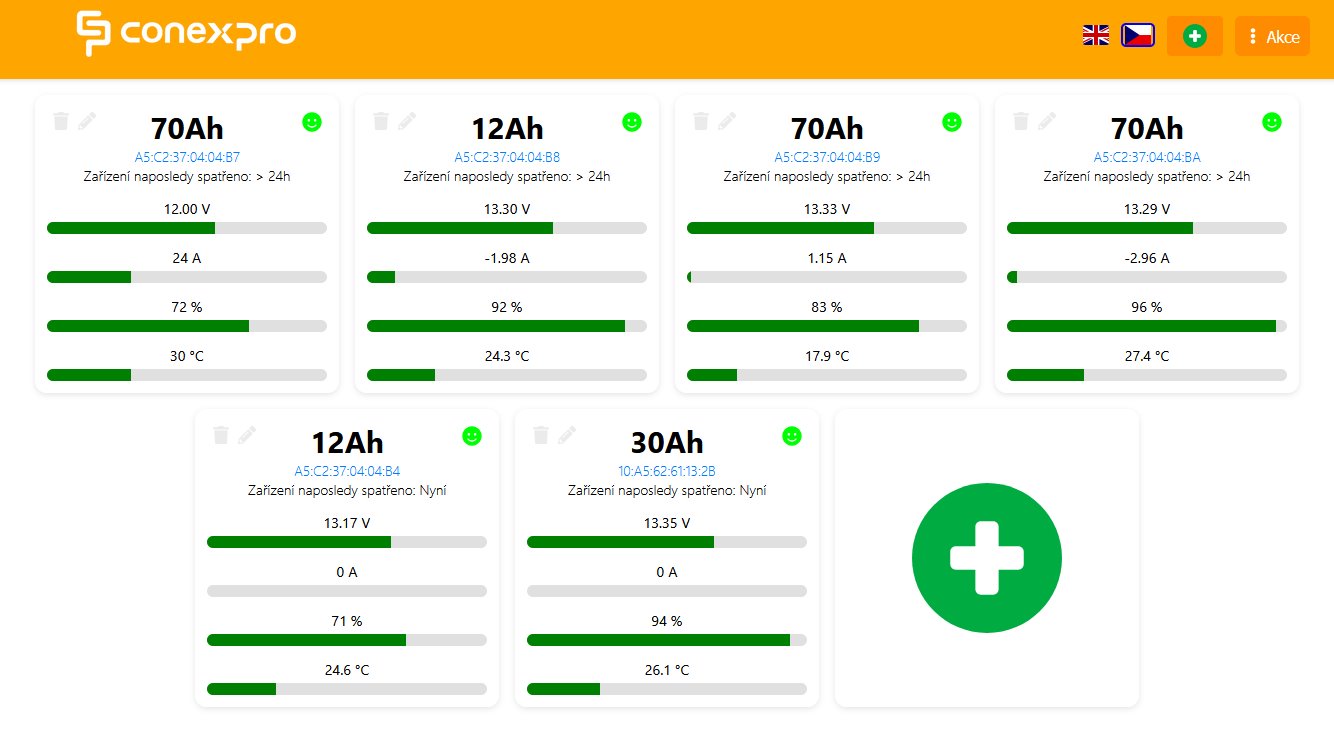

Upon login, the user has an immediate overview of all batteries. Thanks to the clear web interface or SNMP, management is easy, fast, and requires no additional applications.
Package Contents
- Device
- MicroSD card 32 GB - WD purple
- Power adapter 5 V / 2 A
- USB cable USB-A - micro USB
