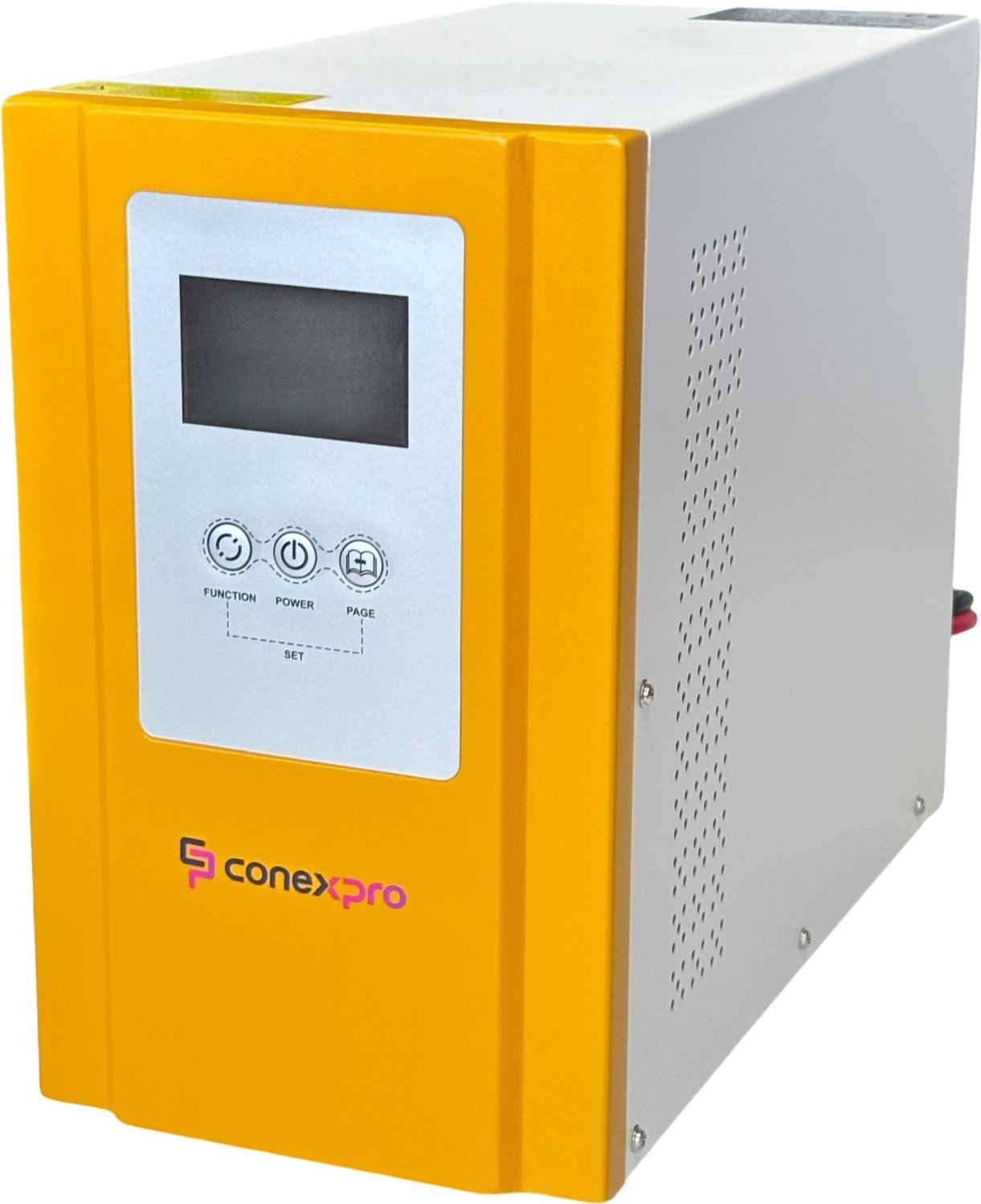

Conexpro WD-70112 inverter for 12V battery, 700W, unpacked in non-original box

Conexpro WD-70112 inverter for 12V battery, 700W, unpacked in non-original box
This is a new, never-used device without original packaging. The device is fully functional, undamaged, and complete.The advanced power supply is designed for a wide range of uses, from homes and offices to industrial applications such as network devices and solar systems. It is fully compatible with LiFePO4 batteries (12V), which it can efficient ... More information
ManufacturerConexpro
PNWD-70112-B1

Product description

This is a new, never-used device without original packaging. The device is fully functional, undamaged, and complete.

The advanced power supply is designed for a wide range of uses, from homes and offices to industrial applications such as network devices and solar systems. It is fully compatible with LiFePO4 batteries (12V), which it can efficiently utilize based on customizable settings, ensuring maximum efficiency and long battery life.

The system offers three operating modes (AC priority, DC priority, power-saving mode) and is equipped with a function to adapt to different electrical networks (73 ~ 275 V AC, 45 ~ 65 Hz). Thanks to the intelligent LCD display, RS485 and RS232 communication port with the ability to monitor error codes in real time, it is an ideal choice for stable and safe operation even in demanding conditions.

Warning: This inverter is equipped with multifunctional sockets (US/UK/EU), but does not comply with the Czech type E. Please check compatibility with your devices before purchasing.

Key Features

  • Sine wave output 230V AC - power up to 700 W
  • Highly efficient toroidal transformer with lower losses

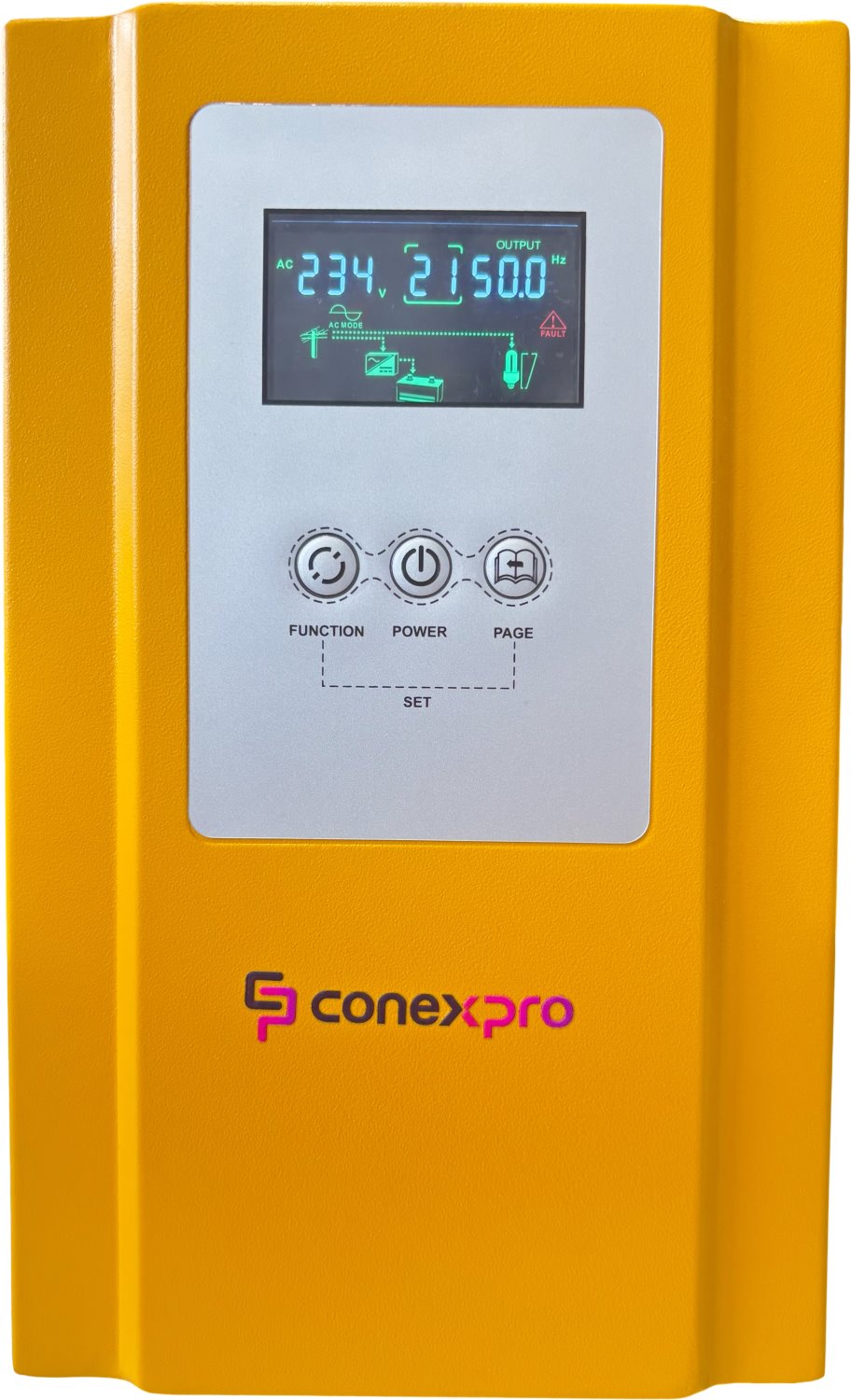

  • Intelligent integrated LCD display
  • Adjustable charging current AC 0–20 A; more flexible battery capacity configuration
  • Support for various battery types - Pb/Lithium/Gel with adjustable charging voltage from 13 to 15V DC
  • Three adjustable operating modes: AC priority, DC priority, power-saving mode
  • Battery charging from 230V AC
  • Support for diesel or gasoline generators, adapting to challenging power conditions

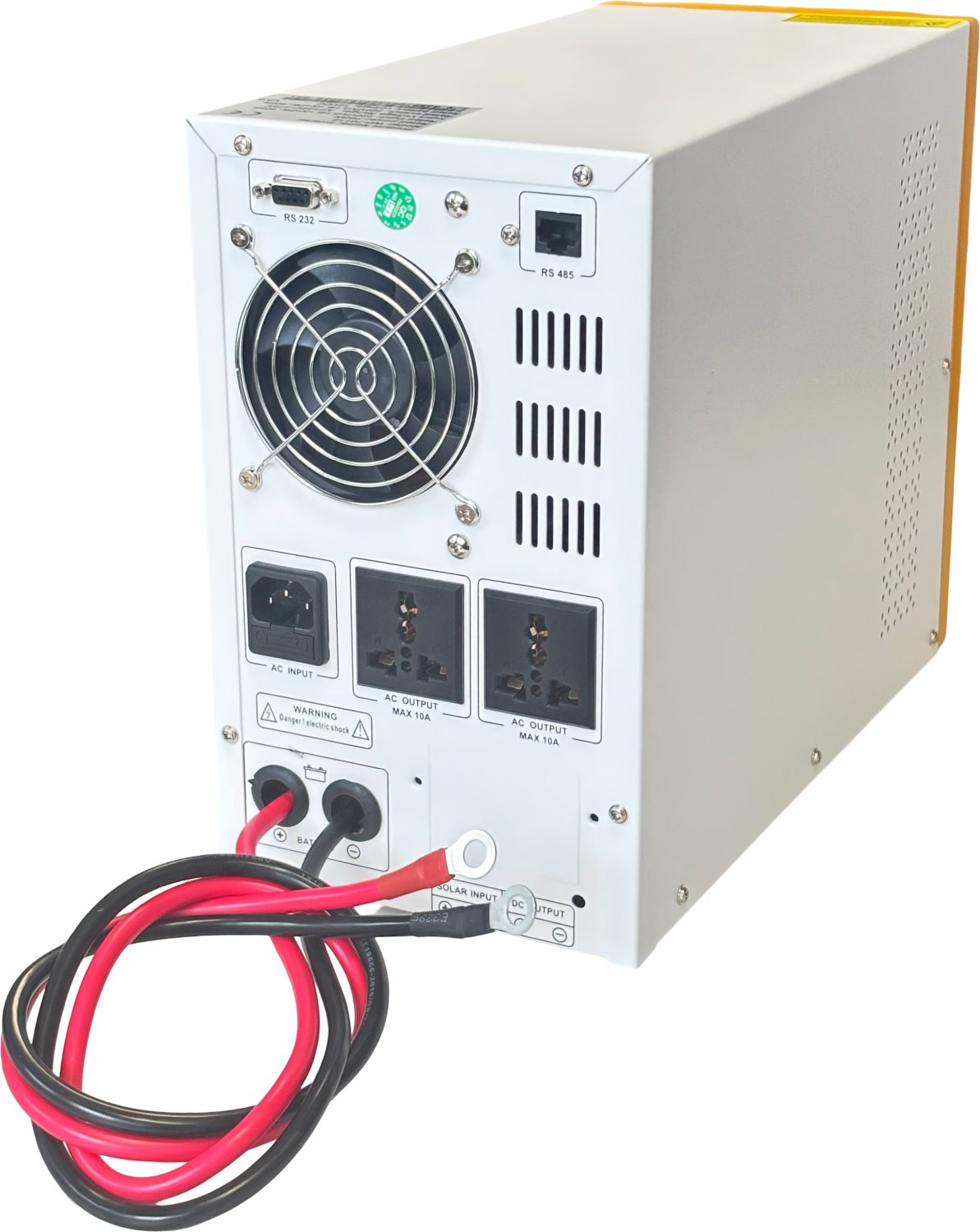

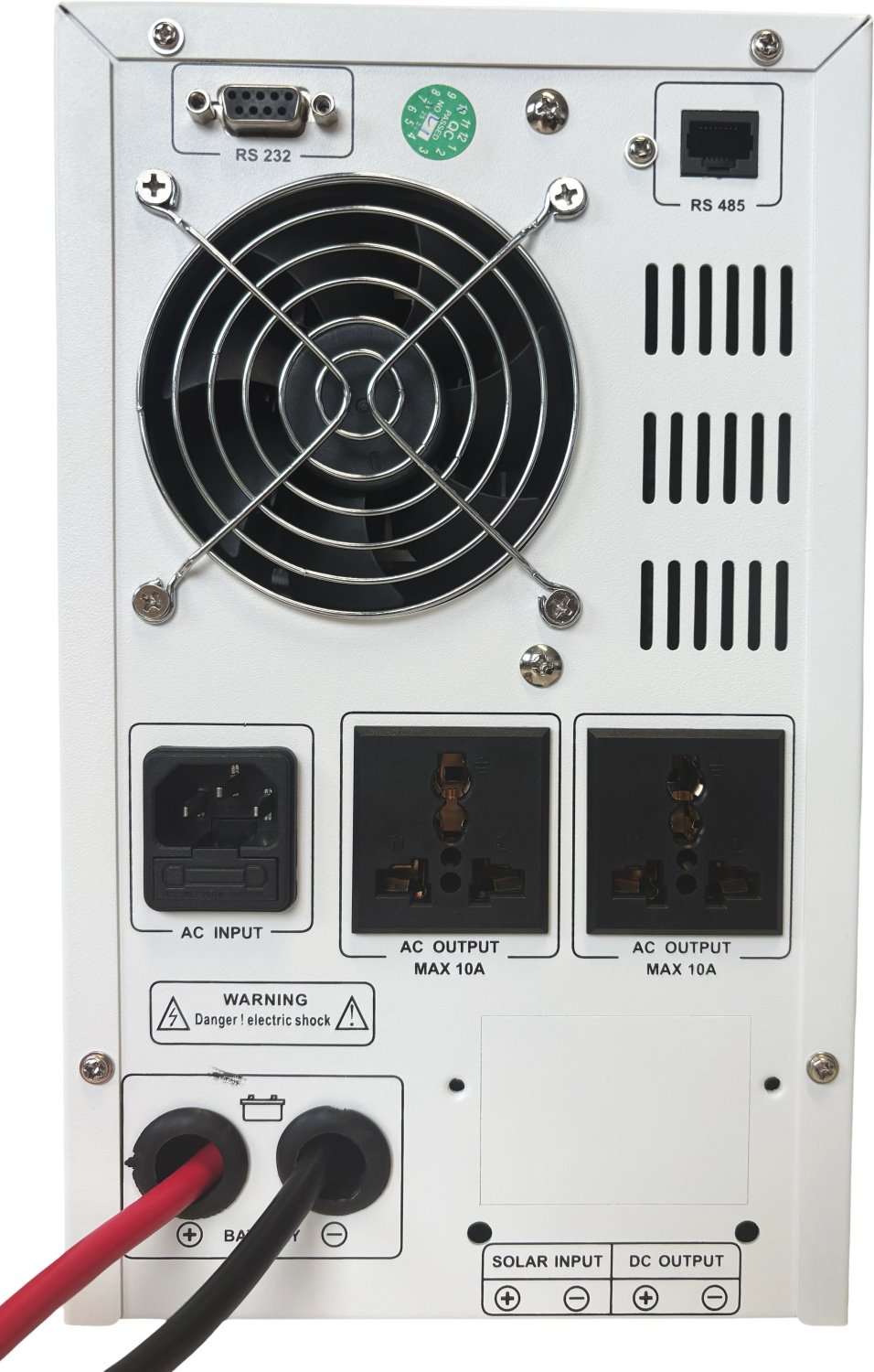

  • RS485 and RS232 communication port
Do you have a question or comment about this product?

Download

Technical parameters

Connectors and interfaces

Connector for external batteryYes
Quantity of sockets2
Communication InterfaceRS-485, RS-232
Battery inputs1

Power

Operating phase1
Max. output power [kW]0,7
Battery technologyLead-acid, Gel, LiFePO4
Power [W]700
Battery systemLow voltage
Battery system [V]12
Battery voltage range [V]12V DC
Max. charging and discharging current [A]20
UPS technologyOff-line

Physical characteristics

Protection classIP20
DesignDesktop
PurposeIndoor
Fans(1) 80 x 80 mm
Operating temperature [°C]0 up to 40
Width [mm]165
Height [mm]278
Depth [mm]340
