Úvodní stranaBracketsAntenna mast mounted holder "L", lenght 35cm, height 20cm, diameter 42mm, U-Bolt 100mm, hot-dip zinc

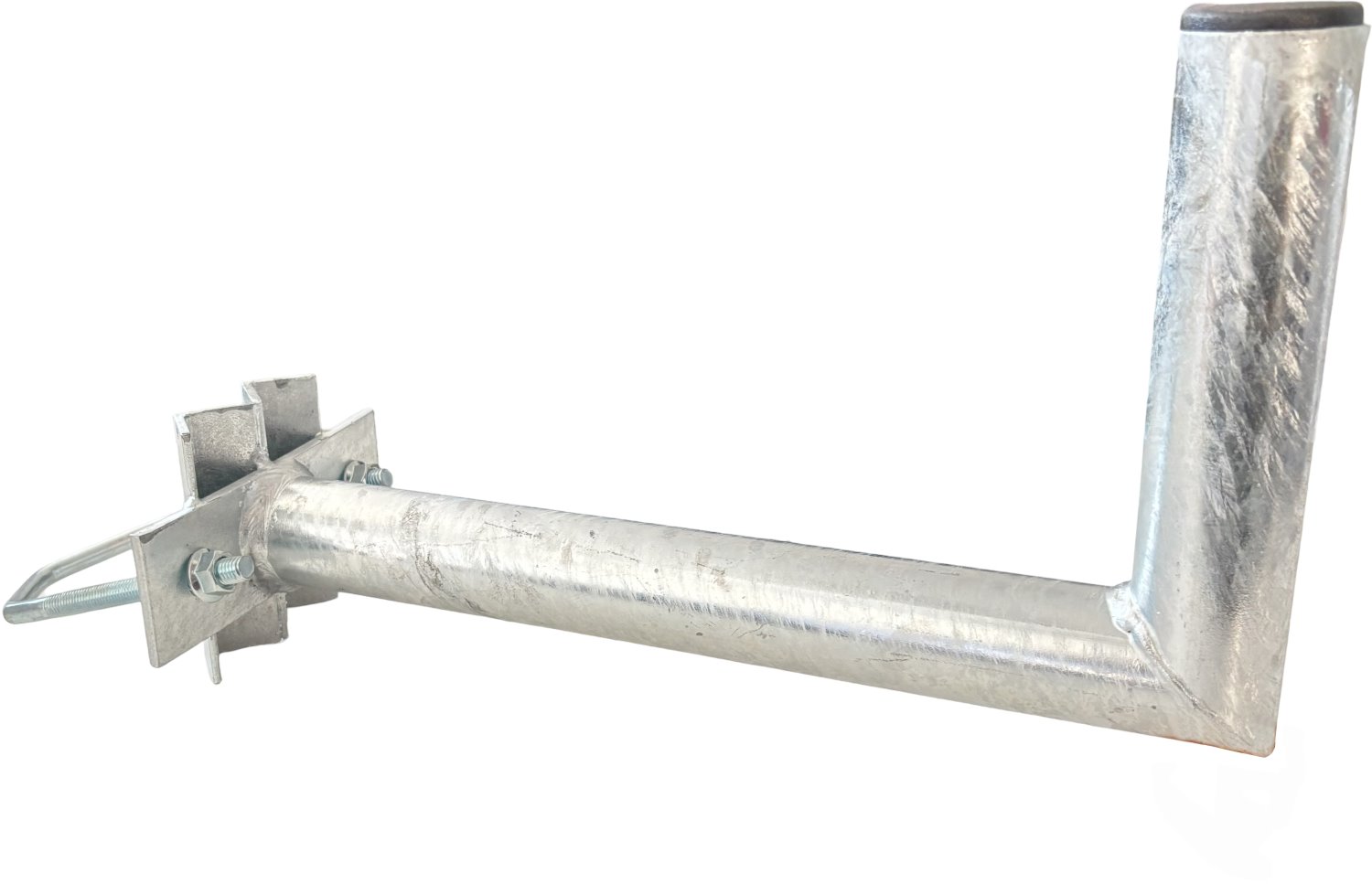

Antenna mast mounted holder "L", lenght 35cm, height 20cm, diameter 42mm, U-Bolt 100mm, hot-dip zinc

The L-shaped antenna mounting bracket for masts from Conexpro is ideal for installing smaller Wi-Fi and other antennas. Thanks to its high-quality hot-dip galvanized finish, it offers long service life and excellent weather resistance. The design features a 42 mm diameter tube, 35 cm length, 20 cm height, and compatibility with mast diameters from ... More information

ManufacturerConexpro

PNK35V1Z

EAN0710497567077

Where to buy Ask a question

Product description Technical parameters

Product description

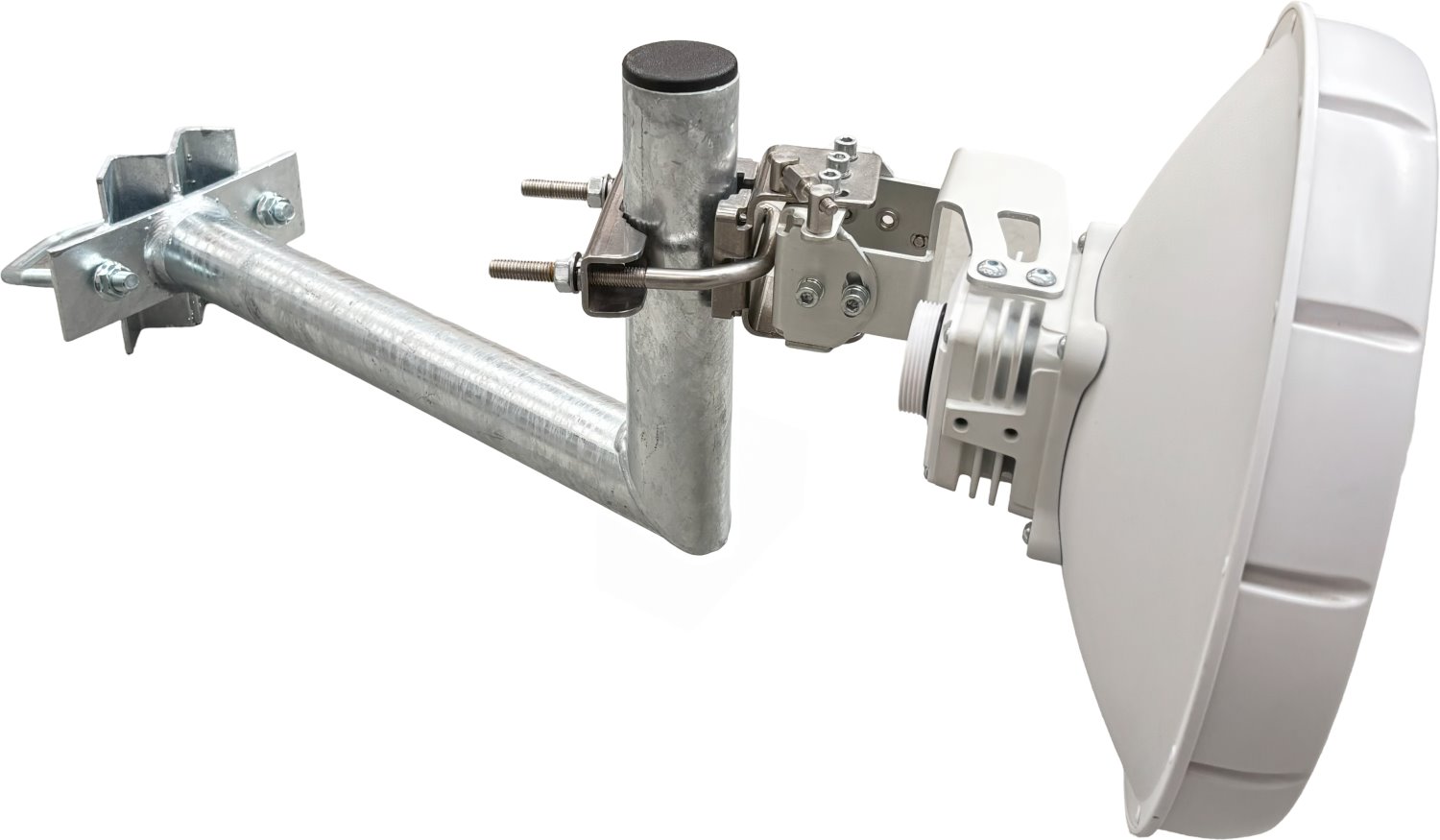

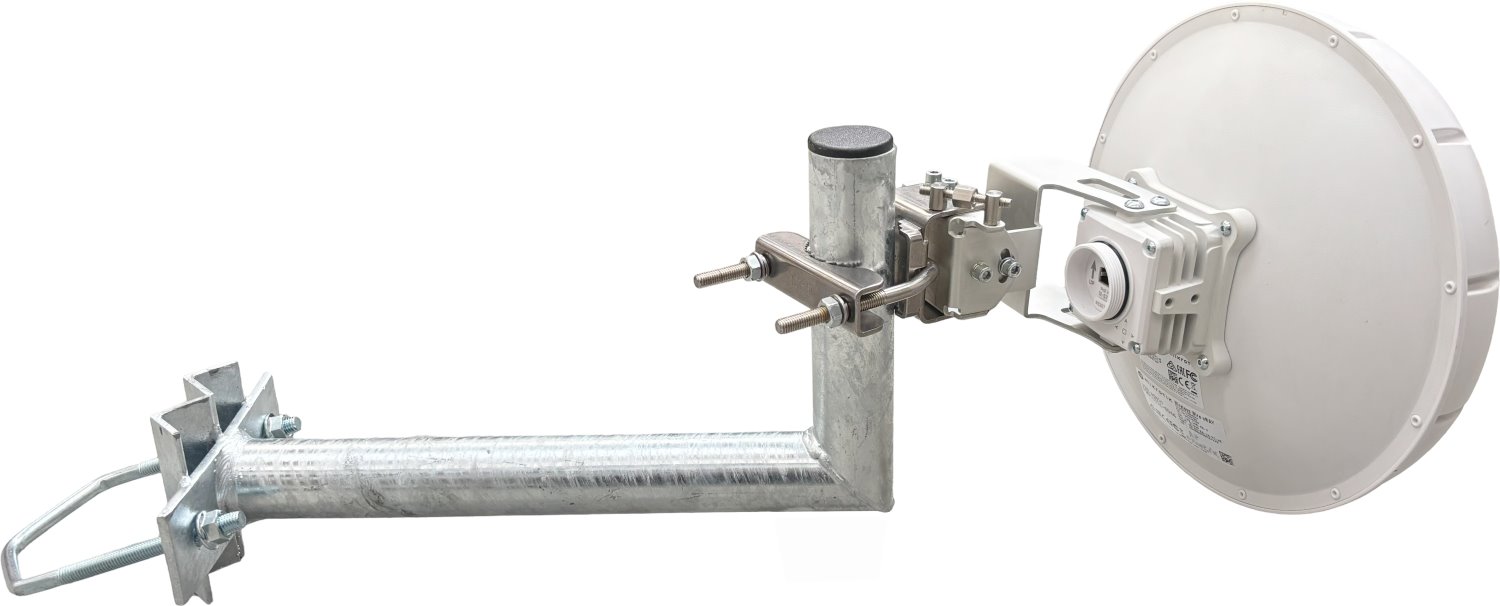

The L-shaped antenna mounting bracket for masts from Conexpro is ideal for installing smaller Wi-Fi and other antennas. Thanks to its high-quality hot-dip galvanized finish, it offers long service life and excellent weather resistance. The design features a 42 mm diameter tube, 35 cm length, 20 cm height, and compatibility with mast diameters from 25 to 90 mm, ensuring flexible installation options.

Hot-Dip Galvanization

Hot-dip galvanization provides superior corrosion resistance and durability compared to electroplating, as the zinc layer typically reaches 50–150 microns, whereas electroplated zinc layers are usually only 5–30 microns thick. This ensures longer-lasting protection, especially for antenna mounts exposed to harsh outdoor conditions.

Do you have a question or comment about this product?

Ask a question

Technical parameters

Physical characteristics

Surface treatmentGalvanized

Designed for mast diameter [mm]25 up to 90

Diameter of pipe [mm]42

Length [cm]35

Weight [kg]1,65

Height [cm]20
