Conexpro GNT-P1026G6, PoE switch, 24x LAN, 24x PoE, 2x SFP

+ 2
more

Gigabit rackmount PoE switch without management and two SFP ports is the ideal PoE switch for small companies, apartment buildings and is intended for power up to 24 device(camera/Wi-Fi AP). The Switch offers reliable operation thanks to integrated cooling, 24x 10/100/1000 Mbps LAN + 2x Gigabit SFP, of which 24 Ethernet ports support the PoE funct ... More information

ManufacturerConexpro

PNGNT-P1026G6

EAN0710497560245

Where to buy Ask a question

Product description Download2 Technical parameters

Product description

Gigabit rackmount PoE switch without management and two SFP ports is the ideal PoE switch for small companies, apartment buildings and is intended for power up to 24 device(camera/Wi-Fi AP). The Switch offers reliable operation thanks to integrated cooling, 24x 10/100/1000 Mbps LAN + 2x Gigabit SFP, of which 24 Ethernet ports support the PoE function (802.3af/at, 30W/ port, ports 23 and 24 even support 802.3af/at/bt - 60W/port) with a total PoE budget of 300W, low internal consumption and power supply via 230V AC connector thanks to the built-in resources.

Key Features

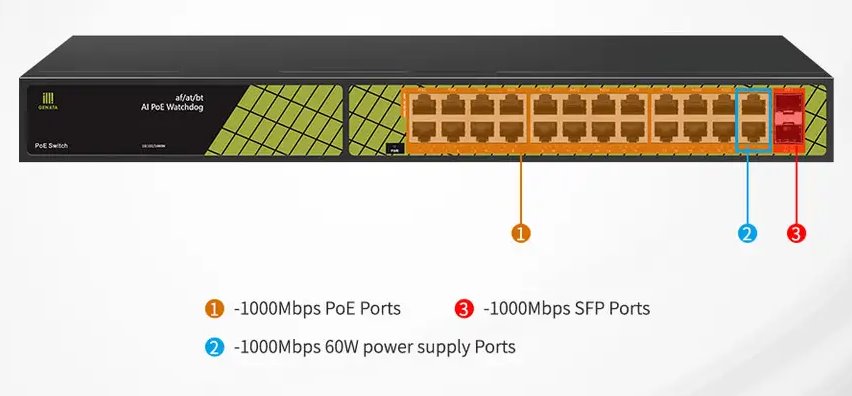

(24) 10/100/1000 Mbps LAN + (2) Gigabit SFP
230V AC power supply
(22) 802.3af/at PoE (30W/port) + (2) 802.3af/at/bt PoE (60W/port)
PoE budget 300W
Rack mounting, 1U height

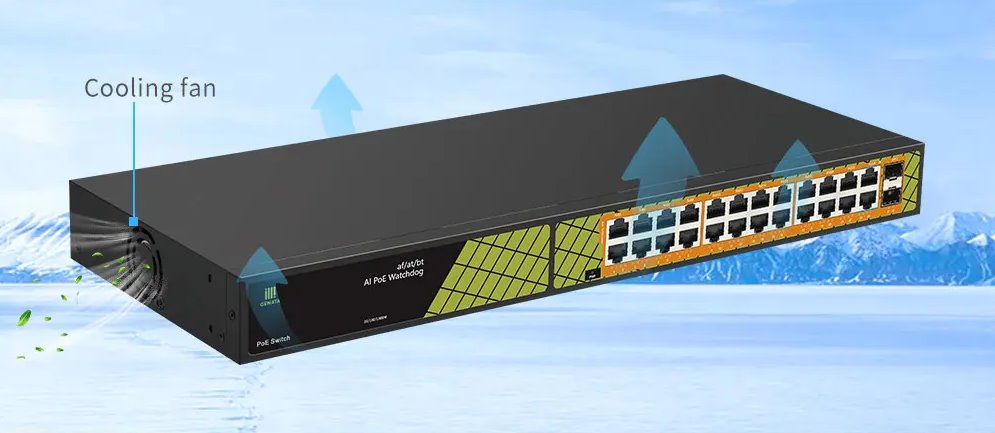

Active cooling - fan from the side of the chassis
PoE watchdog
Dimensions 430 x 180 x 45mm

Package contents

Device
Rack mounts
Power cord

Do you have a question or comment about this product?

Ask a question

Download

Datasheet QSG

Technical parameters

Connectors and interfaces

LAN speed(24) 10/100/1000Mbps

Optical interfaces(2) 1000Mbps

Power

Power typeMains power (230V)

PoE typePoE-Out (only)

PoE-Out standards802.3af, 802.3at, 802.3bt

PoE Out ports24

PoE budget [W]300

Max. power consumption [W]300

Power via connector/terminal230V AC

Physical characteristics

DesignRackmount

PurposeIndoor

Fans(1) 40 x 40 mm

Chassis designMetal

Operating temperature [°C]-30 up to 60

Height [mm]45

Depth [mm]180

Width [mm]430

General

Switchning capacity [Gbps]52

MAC address table8000
