Tile base for antenna mast up to 48 mm, base 50x50 cm

Tile base for antenna mast up to 48 mm, base 50x50 cm
Tile base for antenna mast up to 48 mm, base 50x50 cm

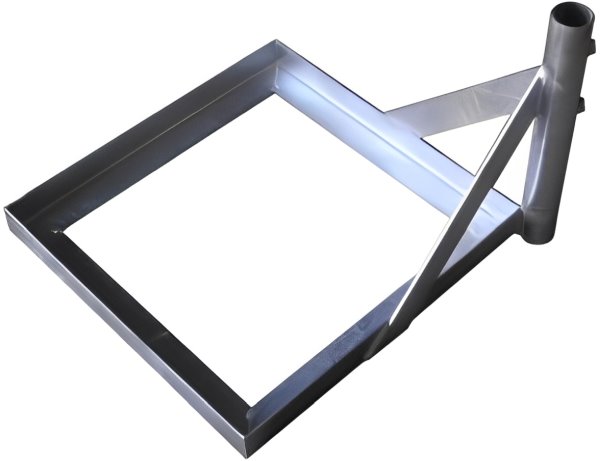

The square base with dimensions of 500 x 500 mm provides stable mounting for an antenna mast with a diameter of up to 48 mm. A tubular holder with a height of 400 mm, positioned in one corner, secures the mast using two M10x20 bolts. The design is adapted for loading with a paving slab (not included), allowing easy installation without the need fo ... More information
ManufacturerConexpro
PNPDS48
Where to buyAsk a question

Product description

The square base with dimensions of 500 x 500 mm provides stable mounting for an antenna mast with a diameter of up to 48 mm. A tubular holder with a height of 400 mm, positioned in one corner, secures the mast using two M10x20 bolts. The design is adapted for loading with a paving slab (not included), allowing easy installation without the need for drilling. The hot-dip galvanized surface treatment ensures high resistance to weather conditions and long-lasting durability.

  • Base dimensions: 500 x 500 mm
  • For masts up to 48 mm in diameter
  • Hot-dip galvanized surface treatment
  • Weight: 7.8 kg
  • Mounting height: 400 mm
  • Concrete slabs are not included
Do you have a question or comment about this product?
Ask a question

Technical parameters

Physical characteristics

Surface treatmentHot dipped
Weight [kg]7,8
Height [mm]400
Depth [mm]500
Width [mm]500
