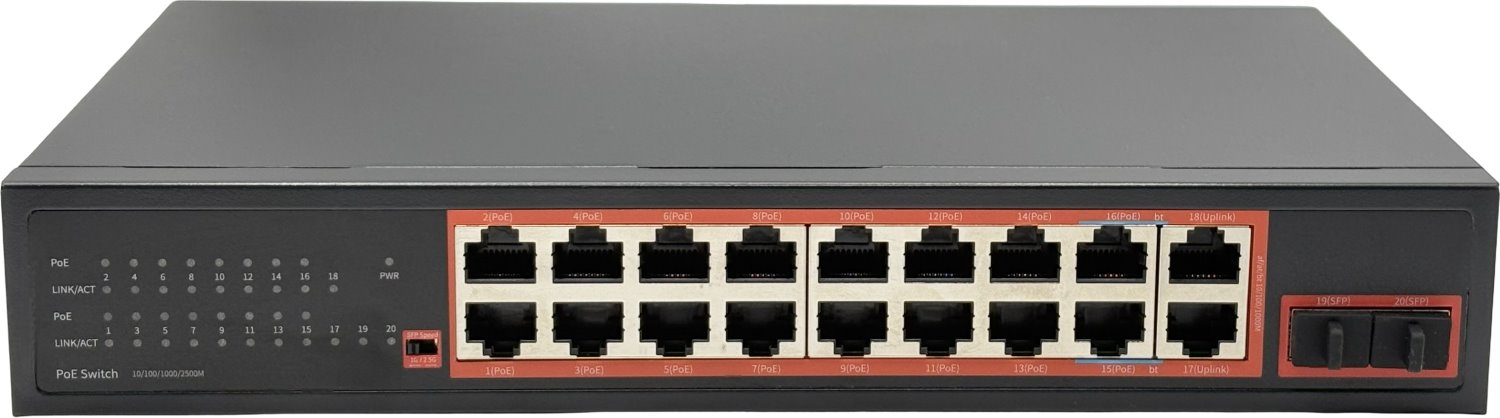

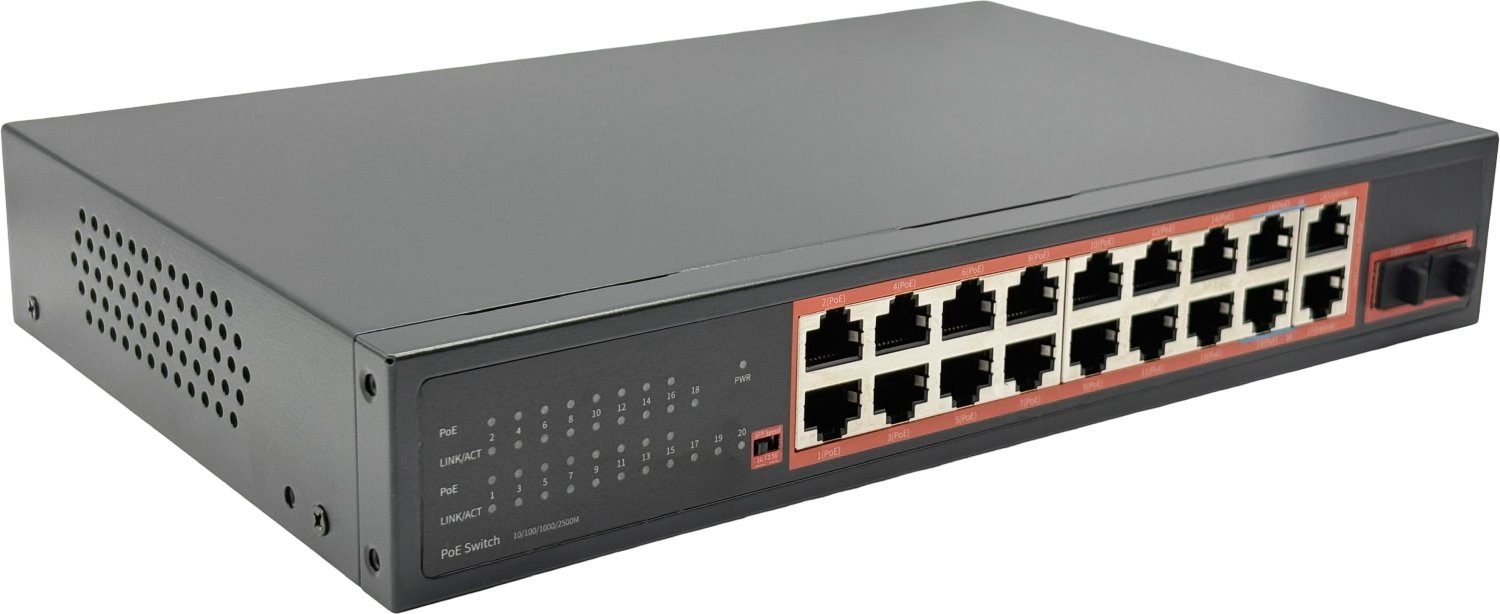

Conexpro GNT-ES20GDH2-P, PoE switch, 18x LAN, 16x PoE, 2x 1/2.5G SFP

Conexpro GNT-ES20GDH2-P, PoE switch, 18x LAN, 16x PoE, 2x 1/2.5G SFP
The robust unmanaged PoE switch offers 18× gigabit LAN ports, of which 16 ports have PoE. Ports 1–14 support standards 802.3af/at with a power of up to 30 W per port, while ports 15–16 handle 802.3af/at/bt up to 60 W. The total PoE budget reaches 240 W, making the switch suitable for powering IP cameras, access points, and other network devices.Fl ... More information
ManufacturerConexpro
PNGNT-ES20GDH2-P
EAN0710497564595

Product description

The robust unmanaged PoE switch offers 18× gigabit LAN ports, of which 16 ports have PoE. Ports 1–14 support standards 802.3af/at with a power of up to 30 W per port, while ports 15–16 handle 802.3af/at/bt up to 60 W. The total PoE budget reaches 240 W, making the switch suitable for powering IP cameras, access points, and other network devices.

Flexible uplink and durable design

For quick connection to other network elements, there are 2× SFP slots supporting speeds of 1G/2.5G and a switch for selecting the specific link speed. The AI PoE Watchdog on ports 1 to 16 automatically helps monitor connected devices. Robust metal chassis with active cooling supports reliable operation and, thanks to the rackmount/desktop design, allows for installation in a rack as well as standalone placement. Power is supplied by 180–240 V AC.

Key features

  • (18) gigabit LAN ports
  • (14) PoE ports 802.3af/at, up to 30 W/port
  • (2) PoE ports 802.3af/at/bt, up to 60 W/port
  • PoE budget up to 240 W
  • (2) SFP slots 1G/2.5G
  • Switch for selecting SFP link speed
  • AI PoE Watchdog on ports 1–16
  • Unmanaged

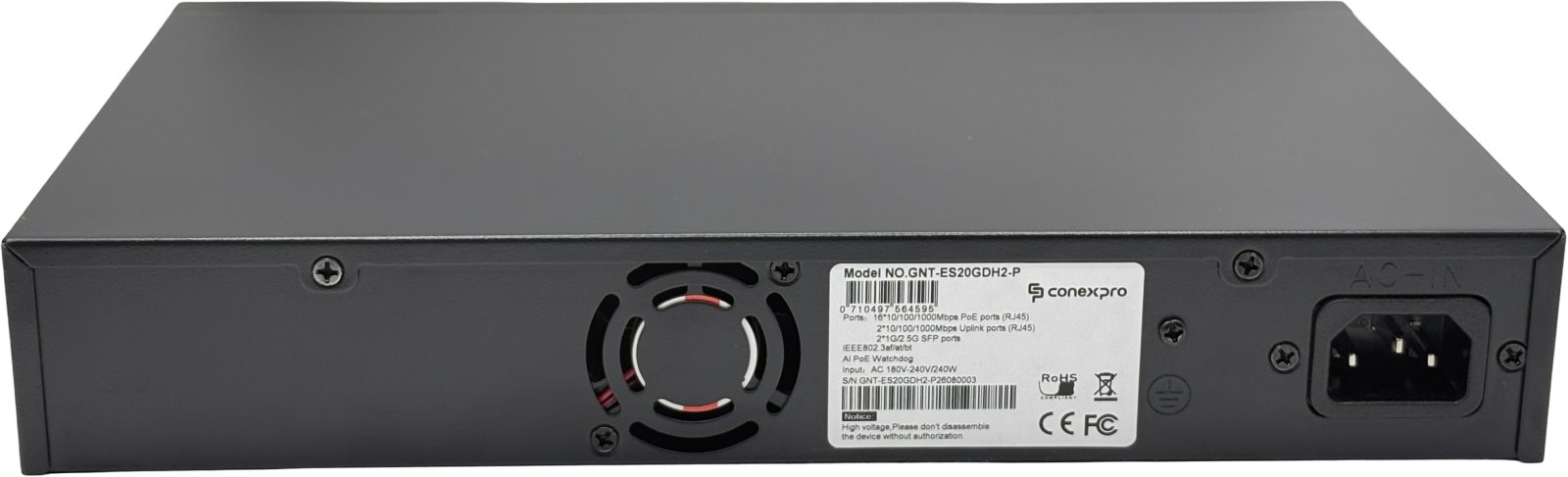

  • Active cooling, 1× fan
  • Robust metal chassis
  • Rackmount / desktop design
  • Power 230 V AC
Do you have a question or comment about this product?

Technical parameters

Connectors and interfaces

LAN speed(18) 10/100/1000Mbps
Optical interfaces(2) 1G/2.5Gbps

Power

Power typeMains power (230V)
PoE typePoE-Out (only)
PoE-Out standards802.3af, 802.3at, 802.3bt
PoE Out ports16
PoE budget [W]240
Max. power consumption [W]240
Power via connector/terminal230V AC

Physical characteristics

DesignRackmount, Desktop
PurposeIndoor
Fans(1) 40 x 40 mm
Chassis designMetal
ButtonsSwitch mode
Operating temperature [°C]-30 up to 60
Height [mm]45
Depth [mm]170
Width [mm]270

General

Switchning capacity [Gbps]46
Packet forwarding rate [Mpps]148,8
MAC address table8000
